scaffolding h frame manufacture

Product Description

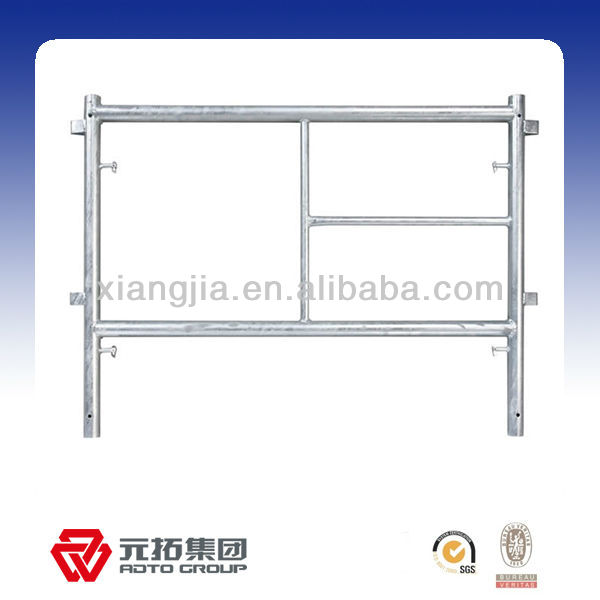

Scaffolding h frame manufacture   Details of the frame scaffold system 1.Material:Q235 Q255 Q345
2.Variety:Walk through type & Ladder type
3.Type:Scaffolding frames 4.Diameter of the tube:42mm or as your request
5.Thickness of the tube:3mm 3.2mm 3.25mm 3.5mm 4mm or customize
6.Surface treatment:HDG/Galvanized/Painted,ect.
7.Certificate:ISO9001:2000  ISO9001:2008
8.Standard:EN74 BS1139 AS1576
9.Advantage:easy erection, strong loading capacity, safety and stability
10.Main components: frame, catwalk, joint pin, cross brace, base jack, u-head jack and caster.
11.Usage: scaffold frames are used widely in bridge, tunnel, petrifaction, shipbuilding, railway, airport, dock industry and civil building etc 12.Performance:good bearing capacity,durable & stable
13.Test: SGS, BV or as per your request

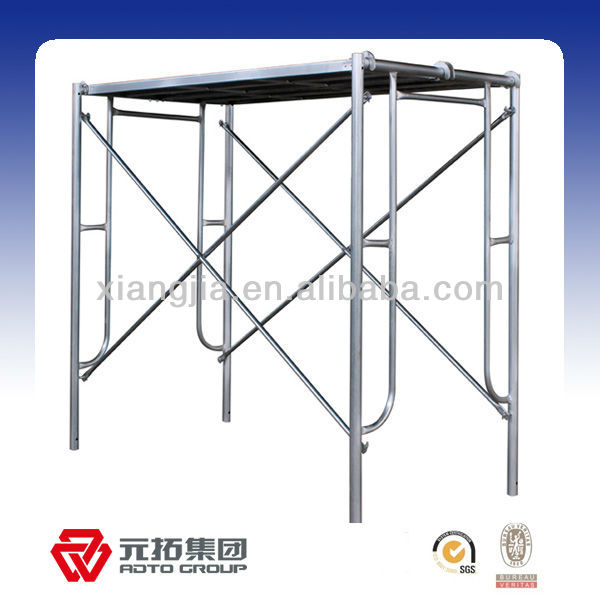

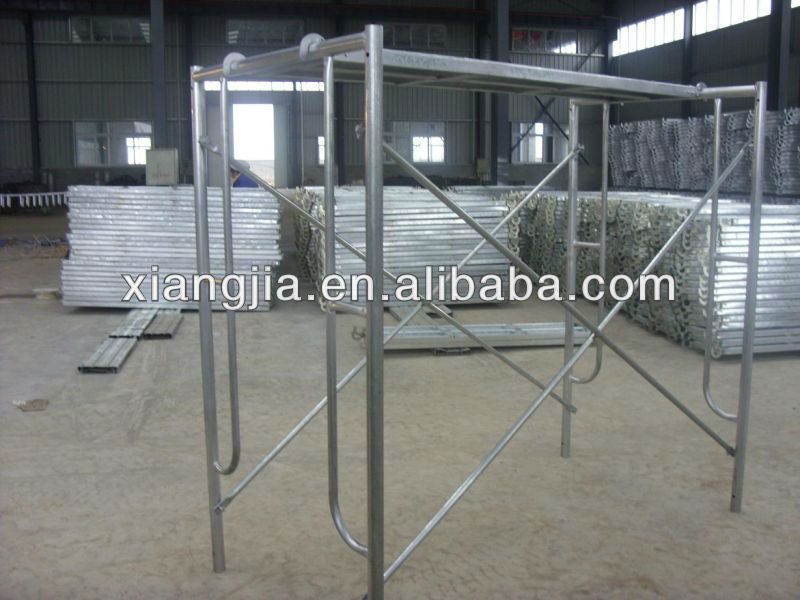

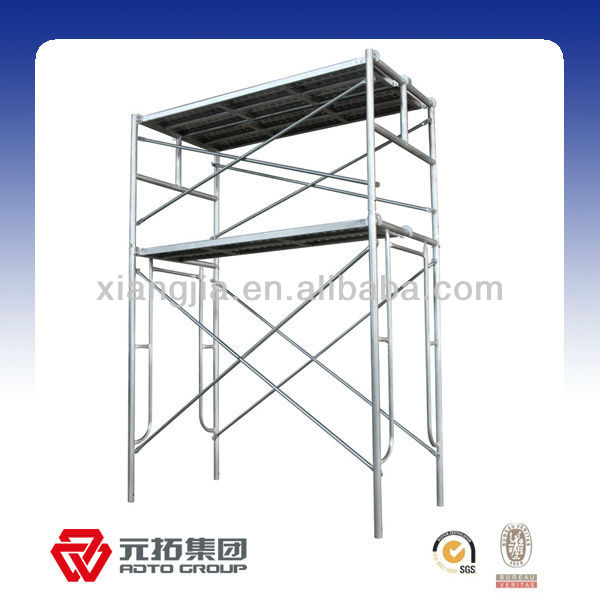

14.OEM service is available.     A complete scaffold frame set usually includes 2 PCS of H frames, 2 pairs of cross braces and 4 PCS of joint pins.   Details of frame scaffold system
No. A B Inner Tube Weight
MB-03/A Φ42X2.4mm Φ42X2.4mm Φ25x1.5mm 13.21kg
MB-03/B Φ42X2.2mm Φ42X2.2mm Φ25x1.5mm 12.43kg
MB-03/C Φ42X2.0mm Φ42X2.0mm Φ25x1.5mm 11.64kg
MB-03/D Φ42X1.8mm Φ42X1.8mm Φ25x1.5mm 10.84kg
  Why Us:   Xiangjia Steel is  a leading manufacturer of frame scaffold system for construction, system scaffoldings and Accessories,galvanized steel pipe,Frames,steel props, metal planks and other related products.   • 7 years experience, sales volume reaches 1.5 billion US dollars.
• Good quality control in production process, ISO9001:2008,SGS,BV approved.
• Excellent quality and Competitive price, OEM is available.
• Available in an extensive range of stock or custom size.
• The whole process from material to finished products can be traced.
• Our factory is close to the port-Xingang,Tianjin.       Factory overview:      Certifications          Our Service:
• Your inquiry related to our product & price will be replied within 24hours.
• Well-trained & experienced staff are to answer all your inquiries professional in English of course.
• Working time: 8:00am - 5:30pm, Monday to Friday.
• OEM is highly welcomed. We have strong R&D team here to help.
• Your business relationship with us will be confidential to any third party.

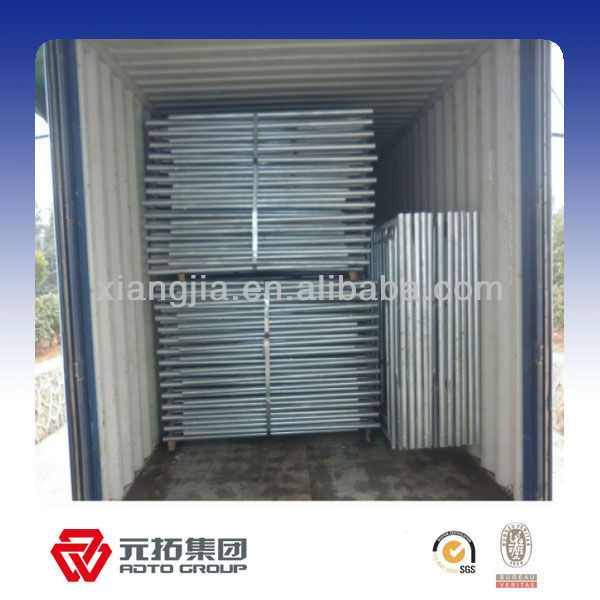

• Good after-sale service offered, please get back if you got question.       Quality control       Scaffold main frame  in pakced           Main Buying Procedures:
• Enquiry: contact us by email, phone call, fax, Instant tools (Trademanager, MSN, Skype) and let us know your enquiry.
• Discussion: specify the items you want, confirm specification.
• Quotation: Prices offered and accepted.
• Place order as per contract or discussion.
• Proforma invoice offered to double confirm the order for both sides record.
• Payment settled.
• Order completed under our arrangement.
• Goods shipped as per contracted term.
• Goods arrive at local port or warehouse, depending on contracted term.
• Support & re-ordering.     Trade show      We also Supply:
Galvanized steel pipe, Ringlock Scaffolding System, Adjustable steel props, Adjustable screw jack, Frame scaffold system, Metal plank, Scaffolding coupler& accessories, Suplock scaffolding system etc.     For more detals please contact us freely ^______^     Mike Liu       T.  +86-731-88660570       F. + 86 731 88660576       M. + 86 13517497929       Skype:  mikeliu0514

Contact us if you need more details on spectacle frame manufacturing equipment. We are ready to answer your questions on packaging, logistics, certification or any other aspects about walk through scaffolding frames、optical frames manufacturers in china. If these products fail to match your need, please contact us and we would like to provide relevant information.
