Guangzhou Manufacture Light Weight Frame Scaffolding For Sale
Product Description

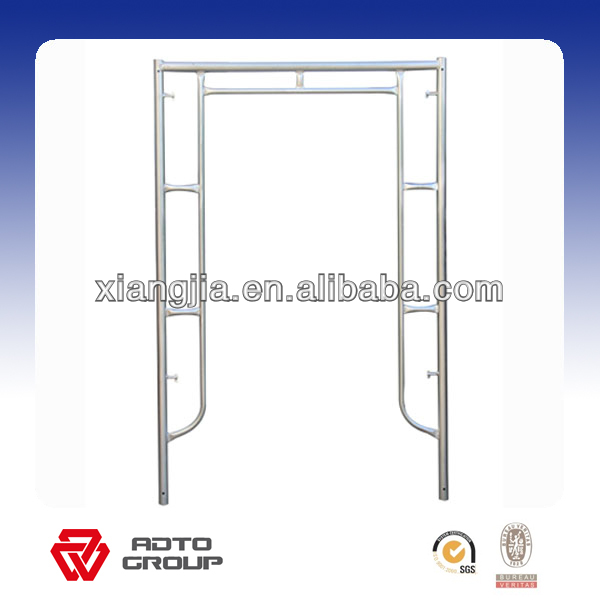

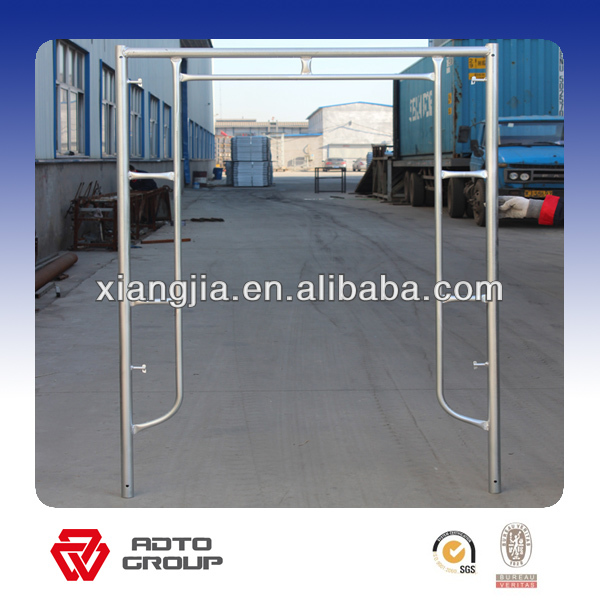

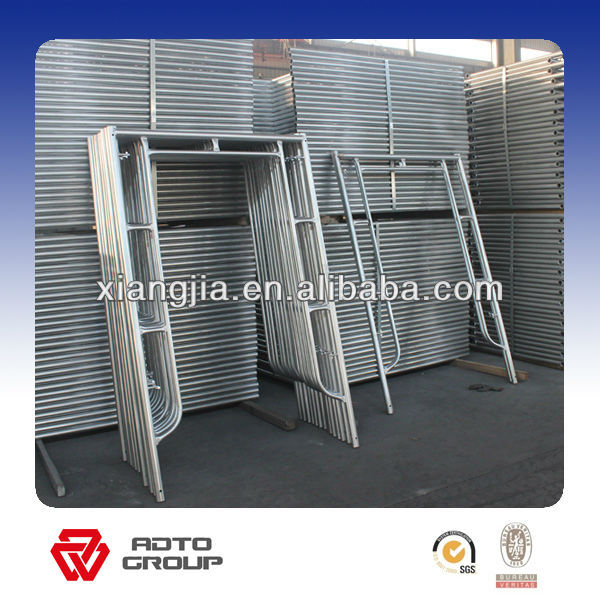

Galvanized walk through gate Scaffolding
H Frame Scaffolding System is for small to medium sized projects, including small or medium sized new build, maintenance, roofing, painting and cladding. They are time efficient, safe and stable. Product Description 1.Material:Q235 Q255 Q345
2.Variety:Walk through type & Ladder type
3.Type: H frame scaffolding system 4.Thickness of the tube:3mm 3.2mm 3.25mm 3.5mm 4mm or customize
5.Surface treatment:HDG/Galvanized/Painted,ect.
6.Color:silver, red, blue, yellow, green or customize
7.Certificate:ISO9001:2000 ISO9001:2008
8.Standard:EN74 BS1139 AS1576
9.Advantage:easy erection, strong loading capacity, safety and stability
10.Main components: frame, catwalk, joint pin, cross brace, base jack, u-head jack and caster.
11.Usage: Our products are used widely in bridge, tunnel, petrifaction, shipbuilding, railway, airport, dock industry and civil building etc frame scaffolding is light duty, easy to erect and walk through, wide applications for both inside and outside constructions.

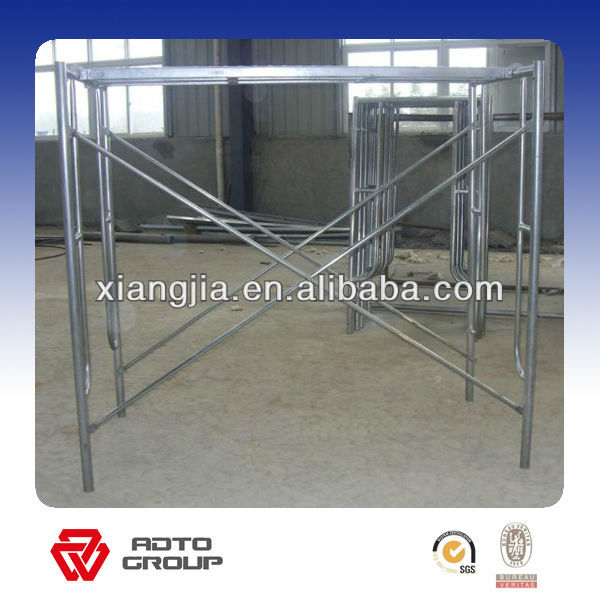

A complete set usually includes 2 PCS of H frames, 2 pairs of cross braces and 4 PCS of joint pins.
Components:
Pre-galvanized tube, Joint Pin, Lock Pin, Cross Brace, Base Jack or Universal Wheel.

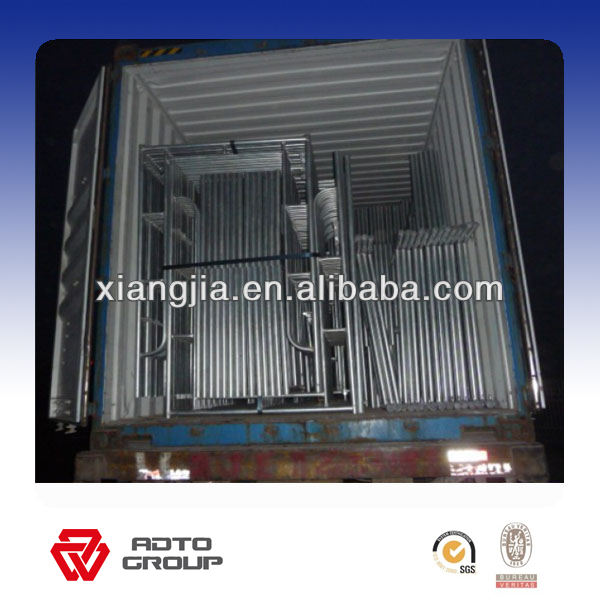

Packaging & Shipping by bundle or as customer's request!! Our Services Why Us: Xiangjia Steel is a leading manufacturer of mason frame scaffolding, system scaffoldings and Accessories,galvanized steel pipe,Frames,steel props, metal planks and other related products. • 7 years experience, sales volume reaches 1.5 billion US dollars.
• Good quality control in production process, ISO9001:2008,SGS,BV approved.
• Excellent quality and Competitive price, OEM is available.
• Available in an extensive range of stock or custom size.
• The whole process from material to finished products can be traced.
• Our factory is close to the port-Xingang,Tianjin. Company Information Factory Show Certification Quality control FAQ 1. Q: What's your MOQ(minimum order quantity)? A: One full container. 2. Q: What's your packing methods? A: Packed into bundle, and rest in bulk. 3. Q: What's your payment terms? A: T/T 30% in advance & T/T 70% upon sending the copy of Bill of Lading, L/C 100%, or negotiate according to the order status. 4. Q: What's your delivery time? A: 10-20 days after received the advance payment or L/C. 5. Q: Are you manufacturer or trader? A: We are the munafacturer of SCAFFOLDINGS materials for decade years. Our group company has 8 subsidiaries and 4 factories, coveraged every scaffolding systems. 6. Q: Where's your factory? A: Our factory is in Tianjin city (near Beijing) and Jiayu city, Hubei Province, afforded enough production ability and earlier delivery time. 7. Q: Can we visit your factory? A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case. 8. Q: Can you supply other scaffolding materials? A: Yes. All related scaffolding materials. (1) scaffolding system (cup-lock system, ring lock system, frame, pipe&coupler system) (2) scaffolding pipes (1.5'-2.0')x(0.3-12m), hop dipped galvanized/ black. BS1139, STK500 (3) steel pipes (ERW BS1387, SSAW PIPE, Sqaure/ Rectangular tube GB/T6728) (4) steel coupler (preesed / drop forged coupler) (5) steel plank with hooks or without hooks (6) steel stair case (7) screw adjustable base jack (8) Adjustable props We also supply: Galvanized steel pipe, Ringlock Scaffolding System, Adjustable steel props, Adjustable screw jack, Frame system, Metal plank, Scaffolding coupler& accessories, Suplock scaffolding system etc. For more detals please contact us freely ^__^ Contact us if you need more details on frame scaffolding . We are ready to answer your questions on packaging, logistics, certification or any other aspects about Guangzhou Manufacture Light Weight Frame Scaffoldi、Gate Frame Scaffolding. If these products fail to match your need, please contact us and we would like to provide relevant information.
H Frame Scaffolding System is for small to medium sized projects, including small or medium sized new build, maintenance, roofing, painting and cladding. They are time efficient, safe and stable. Product Description 1.Material:Q235 Q255 Q345
2.Variety:Walk through type & Ladder type
3.Type: H frame scaffolding system 4.Thickness of the tube:3mm 3.2mm 3.25mm 3.5mm 4mm or customize
5.Surface treatment:HDG/Galvanized/Painted,ect.
6.Color:silver, red, blue, yellow, green or customize
7.Certificate:ISO9001:2000 ISO9001:2008
8.Standard:EN74 BS1139 AS1576
9.Advantage:easy erection, strong loading capacity, safety and stability
10.Main components: frame, catwalk, joint pin, cross brace, base jack, u-head jack and caster.
11.Usage: Our products are used widely in bridge, tunnel, petrifaction, shipbuilding, railway, airport, dock industry and civil building etc frame scaffolding is light duty, easy to erect and walk through, wide applications for both inside and outside constructions.
A complete set usually includes 2 PCS of H frames, 2 pairs of cross braces and 4 PCS of joint pins.
Components:
Pre-galvanized tube, Joint Pin, Lock Pin, Cross Brace, Base Jack or Universal Wheel.
STD/ Ledger(P.G.) mm | Size mm | Weight KG |
---|---|---|
Φ42*2.2/Φ42*2.0 | 1930*1219 | 15.05 |
Φ42*2.0/Φ42*2.0 | 1930*1219 | 14.33 |
Φ42*2.1/Φ42*2.0 | 1930*1219 | 14.43 |
Φ42*2.2/Φ42*2.0 | 1700*1219 | 13.51 |
Φ42*2.0/Φ42*2.0 | 1700*1219 | 12.88 |
Φ42*2.1/Φ42*2.0 | 1700*1219 | 13.20 |
Φ42*2.2/Φ42*2.0 | 1524*1219 | 12.21 |
Φ42*2.0/Φ42*2.0 | 1524*1219 | 11.64 |
Φ42*2.1/Φ42*2.0 | 1524*1219 | 12.00 |
Φ42*2.2/Φ42*2.0 | 914*1219 | 9.56 |
Φ42*2.2/Φ42*2.0 | 1930*914 | 14.19 |
Φ42*2.0/Φ42*2.0 | 1930*914 | 13.47 |
Φ42*2.2/Φ42*2.0 | 1700*914 | 12.65 |
Φ42*2.0/Φ42*2.0 | 1700*914 | 12.02 |
Φ42*2.2/Φ42*2.0 | 1524*914 | 11.60 |
Φ42*2.0/Φ42*2.0 | 1524*914 | 11.03 |
• Good quality control in production process, ISO9001:2008,SGS,BV approved.
• Excellent quality and Competitive price, OEM is available.
• Available in an extensive range of stock or custom size.
• The whole process from material to finished products can be traced.
• Our factory is close to the port-Xingang,Tianjin. Company Information Factory Show Certification Quality control FAQ 1. Q: What's your MOQ(minimum order quantity)? A: One full container. 2. Q: What's your packing methods? A: Packed into bundle, and rest in bulk. 3. Q: What's your payment terms? A: T/T 30% in advance & T/T 70% upon sending the copy of Bill of Lading, L/C 100%, or negotiate according to the order status. 4. Q: What's your delivery time? A: 10-20 days after received the advance payment or L/C. 5. Q: Are you manufacturer or trader? A: We are the munafacturer of SCAFFOLDINGS materials for decade years. Our group company has 8 subsidiaries and 4 factories, coveraged every scaffolding systems. 6. Q: Where's your factory? A: Our factory is in Tianjin city (near Beijing) and Jiayu city, Hubei Province, afforded enough production ability and earlier delivery time. 7. Q: Can we visit your factory? A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case. 8. Q: Can you supply other scaffolding materials? A: Yes. All related scaffolding materials. (1) scaffolding system (cup-lock system, ring lock system, frame, pipe&coupler system) (2) scaffolding pipes (1.5'-2.0')x(0.3-12m), hop dipped galvanized/ black. BS1139, STK500 (3) steel pipes (ERW BS1387, SSAW PIPE, Sqaure/ Rectangular tube GB/T6728) (4) steel coupler (preesed / drop forged coupler) (5) steel plank with hooks or without hooks (6) steel stair case (7) screw adjustable base jack (8) Adjustable props We also supply: Galvanized steel pipe, Ringlock Scaffolding System, Adjustable steel props, Adjustable screw jack, Frame system, Metal plank, Scaffolding coupler& accessories, Suplock scaffolding system etc. For more detals please contact us freely ^__^ Contact us if you need more details on frame scaffolding . We are ready to answer your questions on packaging, logistics, certification or any other aspects about Guangzhou Manufacture Light Weight Frame Scaffoldi、Gate Frame Scaffolding. If these products fail to match your need, please contact us and we would like to provide relevant information.
